As household medical devices are upgrading to "higher power and longer battery life", the "safety redundancy" and "load adaptability" of the power supply system have become the key guarantees for the home health scenario.

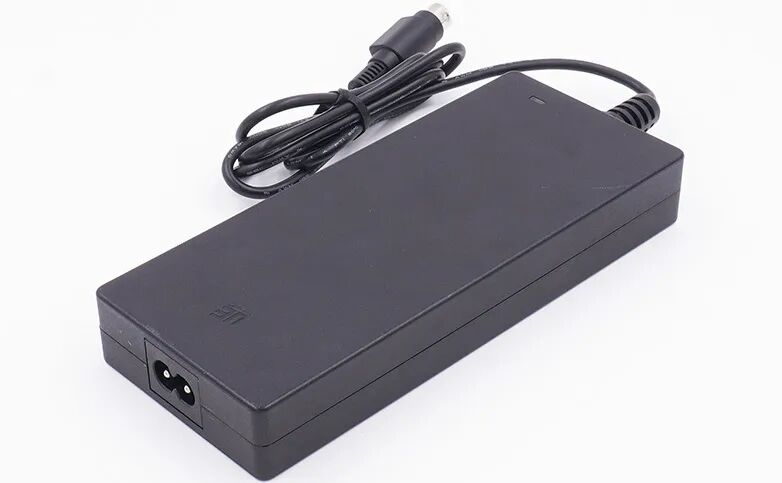

UE Electronic has launched the Home Healthcare Medical Adapter series UES180DZ-SPA, featuring a "180W high power + medical-grade safety architecture + intelligent low-power design" as its core. This makes it a highly reliable power supply option for household medical devices.

I. Core Strengths

The core advantages lie in the triple technical barriers of safety, high power, and intelligence.

The design of UES180DZ-SPA is based on the principle that "home medical safety is the underlying logic, and high-power stable output is the core function". Through three key technologies, it achieves full coverage of various scenarios.

II. Coverage for Home Medical and High-Load Equipment

1. Dual protection, comprehensive compliance across all scenarios

As an IP22 protected and Class I & II equipment, UES180DZ-SPA strictly complies with the highest safety standards for household medical electrical appliances:

Electrical Isolation and Leakage Current Control: The standard configuration features a 2MOPP (dual patient protection) input-output isolation design, along with an ultra-low contact leakage current of ≤ 100μA. This design completely eliminates the risk of electric shock in non-professional home operation scenarios at the circuit level, fully meeting the IEC 60601-1 "General Safety Standard for Medical Electrical Equipment" and IEC 60601-1-11 "Safety Standards for Home Medical Environments".

Multi-authentication and Compatibility: Obtained international safety certifications such as UL, TÜV Rheinland, and CB, and also compatible with the EMC requirements of I.T.E devices (conforming to CE/CCC/FCC standards), achieving dual-domain safety coverage for "home medical equipment + high-load commercial equipment".

2. Wide voltage output, Green energy efficiency

The UES180DZ-SPA supports a wide voltage output range of 11V to 56V (with a maximum power of 180W). Its core advantages are remarkable:

Dynamic load adaptation: It can automatically match voltage and current according to the device requirements - it can provide stable small currents for low-power household medical devices, and also achieve continuous high-power power supply for high-load devices (such as household ventilators, oxygen generators, etc.). The energy efficiency reaches the VI standard, and is over 35% higher than that of traditional adapters.

Low-power design with hierarchical classification: Achieves intelligent standby control for different output voltages: When the output voltage is ≥ 19V, the standby power is ≤ 0.21W; when the output voltage is ≤ 19V, the standby power is ≤ 0.15W. This meets the requirements of green energy conservation and significantly reduces the energy consumption cost for long-term use in households.

3. Desktop-style design - Global compatibility

The UES180DZ-SPA adopts a "desktop-style design with replaceable pins", balancing deployment stability and operational flexibility:

Compact and durable design: The body size is only 165×69.5×24.25mm, suitable for home desktops, medical equipment cabinets and other scenarios; tested according to the MIL-HBK-217 standard, the MTBF (Mean Time Between Failures) is > 100,000 hours (at 25℃ environment), and passed the 10MΩ insulation resistance test, ensuring the electrical stability for long-term high-load operation.

Global scene coverage: Supports wide input range of 90~264VAC (CLASS I) and 90~264VAC (CLASS II), suitable for different power grids around the world;

Based on the characteristics of "180W high power + medical-grade safety + intelligent energy efficiency", the UES180DZ-SPA can be widely compatible with the following devices:

1. Home medical equipment category

Respiratory support equipment: Home ventilators, high-flow oxygen therapy devices, etc., are life-supporting equipment that require continuous high-power power supply.

Rehabilitation therapy equipment: High-power medium-frequency electrotherapy devices, warm traction therapy devices, etc., require wide-voltage compatible high-power rehabilitation equipment.

Monitoring equipment: Multi-parameter home monitoring devices, such as dynamic electrocardiogram/blood pressure monitors, etc., are high-precision monitoring devices that require stable power supply.

Nursing equipment: Home suction devices, intelligent infusion pumps, etc., require nursing auxiliary equipment with low leakage current;

2. I.T.E. and Commercial Equipment Category

Portable medical equipment: Portable ultrasound diagnostic devices, mobile medical workstations, etc., mobile medical equipment that requires high-power power supply;

Commercial equipment: Small medical testing instruments, outdoor data collection terminals, etc. Require wide voltage range and high reliability for commercial use.

Why choose UES180DZ-SPA?

In the field of household medical power supplies, "safety" is the unbreakable bottom line, and "stable output" is the core requirement for medium and high-load devices - UES180DZ-SPA simultaneously possesses:

Home medical-grade safety certification: Compliant with IEC 60601-1/-1-11 standards, meeting the stringent safety requirements for home environments;

180W wide-voltage output: Covers the power supply requirements of medium and high-load household medical equipment, ensuring the continuous and stable operation of the devices.

Intelligent low-power design: Hierarchical standby power control, reducing energy consumption costs for long-term home use;

Universal scene compatibility: compatible with wide temperature and humidity ranges, high altitudes + global pin design, suitable for different household and regional environments.

Summary:

For both home medical equipment manufacturers and commercial equipment manufacturers, the UES180DZ-SPA is not only a "safe and compliant power supply", but also a cost-effective power solution that combines "stable output, intelligent energy efficiency, and full-scenario compatibility", providing a solid guarantee for the home deployment of the equipment.
